Dawnergy Telecom’s DA-PP-S-Y is sliding type fiber optic patch panel that suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and patchcord. Its bracket support 19inch or 21inch rack mounted application.
1U height for 48 fibers
2U height for 96 fibers
Features
1) It is made of high-quality cold roll steel & the surface is sprayed with electrostatic powder.
2) The front door has a hinge, a flip-type structure with elastic door buckle locking method.
3) Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high reliability.
4) The fiber splice stray is made of high-quality plastic, including the fiber splicing module, fiber arrangement module, and adapter panel, which can be disassembled and interchanged.
5) The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U. There are supporting members on the side of the tray, which can be flipped, and the fiber splicing is convenient.
6) There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails.
7) Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation.
Specifications
| Model | Dimension (mm) | Material | Splice tray Qty | Splicing capacity | Each splice tray adapter ports |
| DA-PP-S-Y-24 | 440x275x43.6 | Cold roll steel chassis + ABS plastic splice tray | 1pc | Each tray with 24FO module, max.24 fibers. | 12 SC simplex |
| DA-PP-S-Y-48 | 2pcs | Each tray with 24FO module, max.48 fibers. |
| DA-PP-S-Y-96 | 440x277x88.9 | 4pcs | Each tray with 24FO module, max.96 fibers. |
Drawing
DA-PP-S-Y-48
DA-PP-S-Y-96
Splice tray
Available Configuration

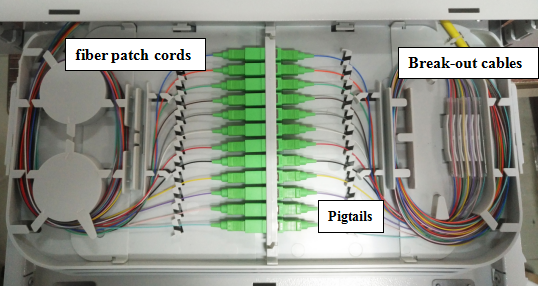

1. Break-out cables in & fiber patch cords out

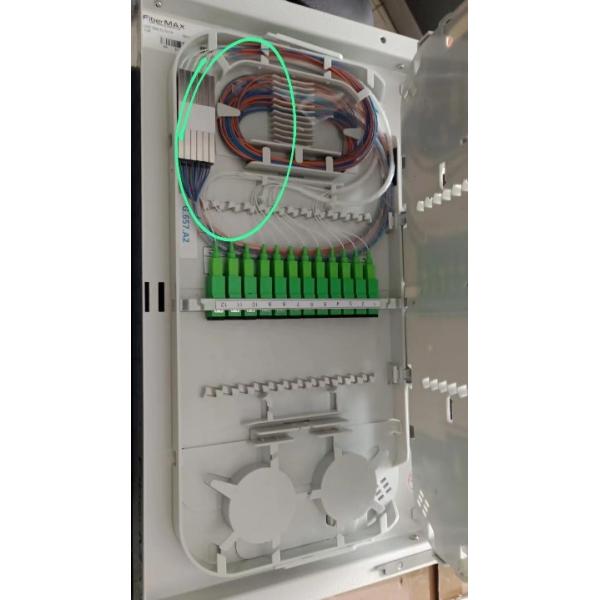

2. PLC splitter in & fiber patch cords out

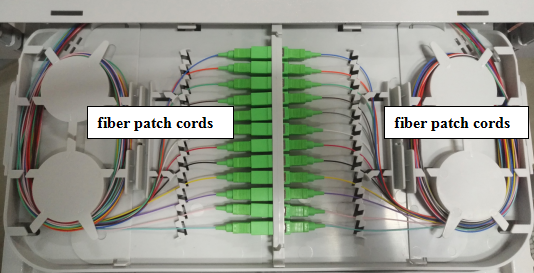

3. Fiber patch cords in & fiber patch cords out
Ordering Information
| PN | Name | Description |
| DA-PP-S-Y-24 | Fiber Optic Patch Panel | 19-inch rack, 1U, sliding type; Max. 24 cores, SC adapter panel; 1pc 24F splice tray; 12pcs 1x2 mini type PLC splitter and 12pcs SC/APC adapters included |
| DA-PP-S-Y-48 | Fiber Optic Patch Panel | 19-inch rack, 1U, sliding type; Max. 48 cores, SC adapter panel; 2pcs 24F splice tray; 24pcs 1x2 mini type PLC splitter and 24pcs SC/APC adapters included |
| DA-PP-S-Y-96 | Fiber Optic Patch Panel | 19-inch rack, 2U, sliding type; Max. 96 cores, SC adapter panel; 4pcs 24F splice tray; 48pcs 1x2 mini type PLC splitter and 48pcs SC/APC adapters included |
The above ordering information is configured according to the picture below
